OHRA stands for quality

OHRA's modern and efficient storage systems are characterised by their outstanding quality, flexibility, and efficiency. The shelving systems are not only robust and durable, but also offer customised solutions for various requirements. The wide range of products, from multi-tier shelving and wide-span shelving systems to innovative storage systems, enables optimum use of the available storage space.

Racks with roof

OHRA presents efficient storage systems with roofs for outdoor storage, which not only extend the storage area but also ensure optimum protection of the shelving system from the weather. Cantilever to pallet racks featuring various roof structures, statically calculated and adapted to regional requirements. These shelving systems are ideal for storing timber, and ensure that the goods are kept dry and ventilated. The advantages include optimum use of space, individual design, installation services including roofing, and a well-balanced price-performance ratio. Weather protection systems such as nets and folding curtains offer additional protection and can be retrofitted. If you have any questions or would like a non-binding offer, OHRA will be happy to provide you with personal advice.

Consultation

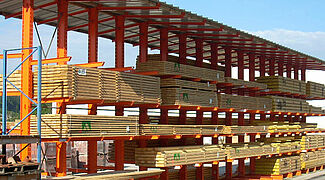

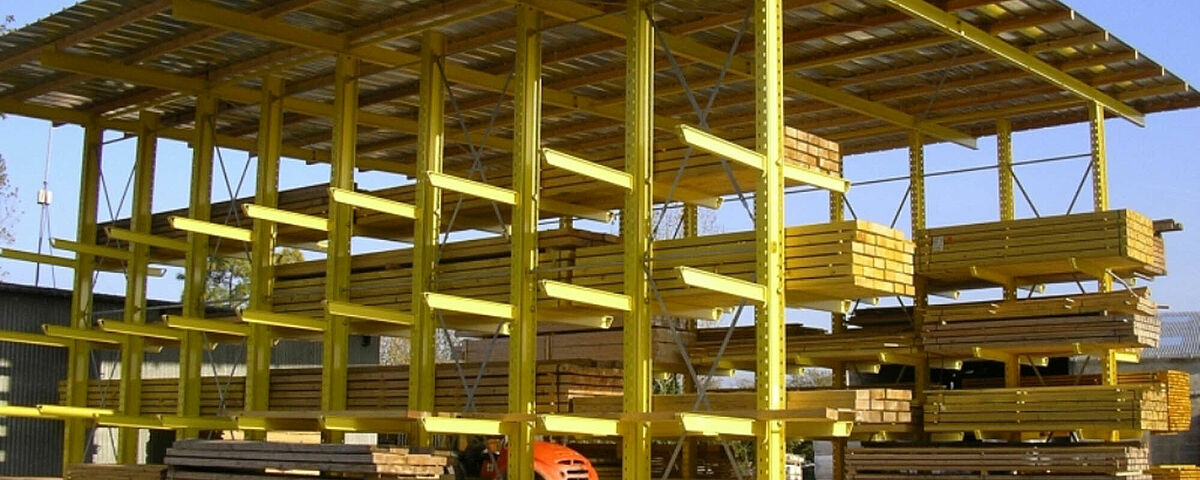

Cantilever racking with roof

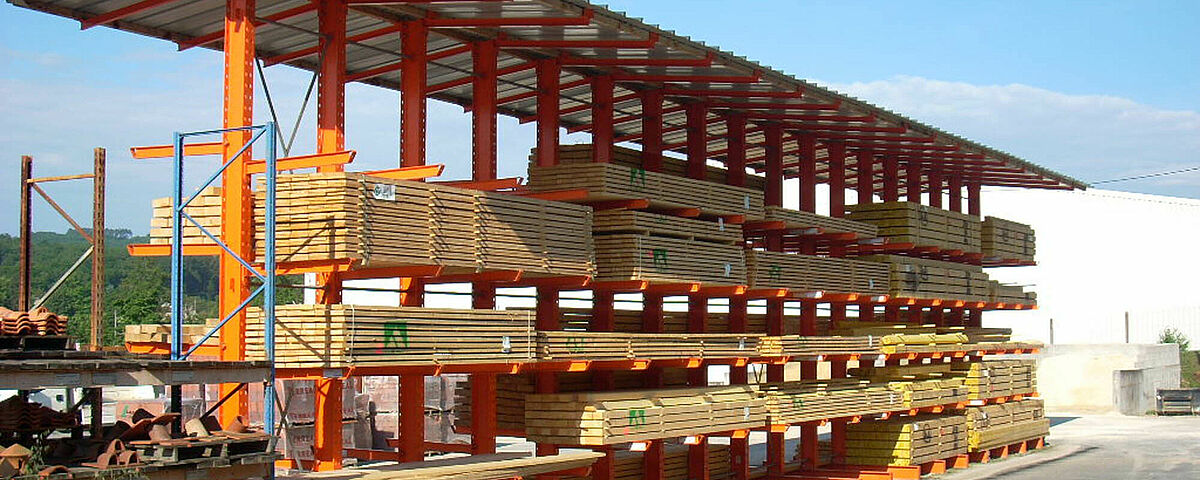

Cantilever racking system with a monopitch roof

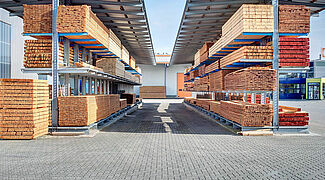

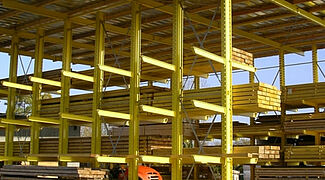

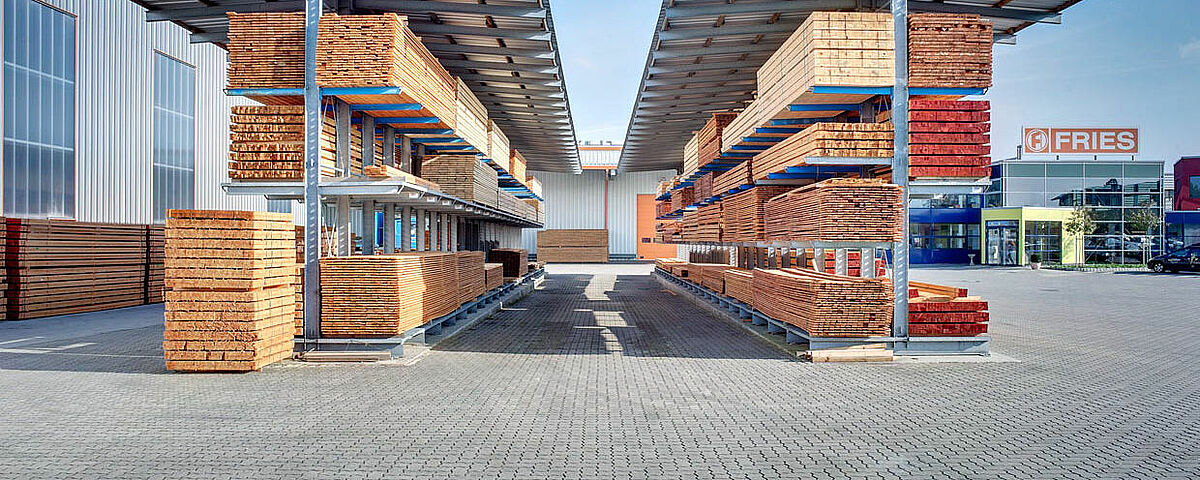

Cantilever racking system with roof

Dynamic shelving systems

Dynamic shelving systems are modular solutions that increase storage capacity and speed up the picking process. Although the initial costs are higher than with traditional shelving systems, the long-term economic benefits can offset the investment. OHRA offers a wide range of dynamic shelving systems, including order picking flow racks and pallet flow racks for heavy loads. Such efficient storage systems cover a variety of applications and budgets. The advantages of OHRA dynamic shelving systems include modular, standardised components, adaptability to the stored goods and area of use, and optimisation of travel distances and picking times.

Pallet flow racks are space-saving solutions that can be installed according to the first-in-first-out principle and enable high space utilisation through passageway formation. Order picking flow racks are particularly suitable for carton goods or crates with roller conveyors and optimise work travel distances and picking times according to the FIFO principle. Push-back racking, also known as trolley systems, are space-saving innovative storage systems according to the last-in-first-out principle and enable the storage of up to 6 pallets deep on trolleys.

Consultation

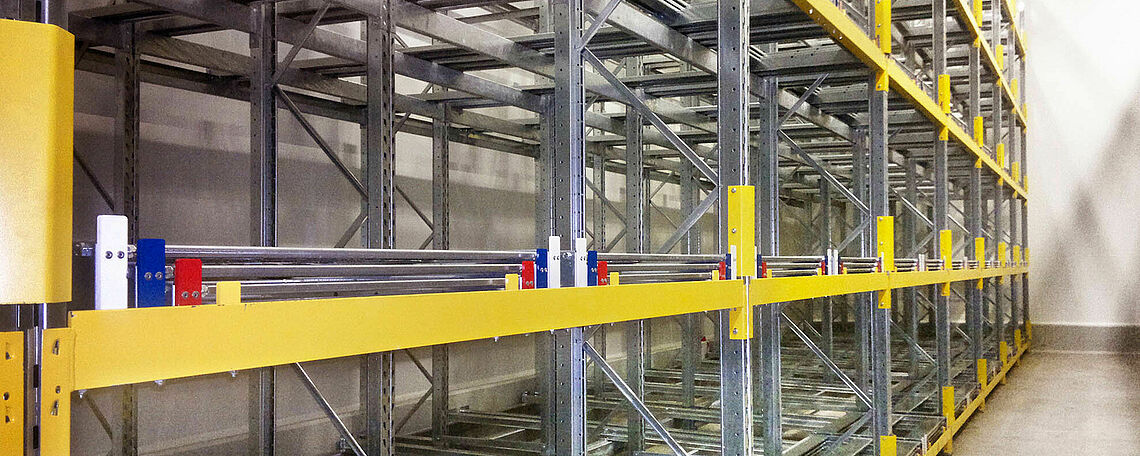

push-back rack Ohra 03

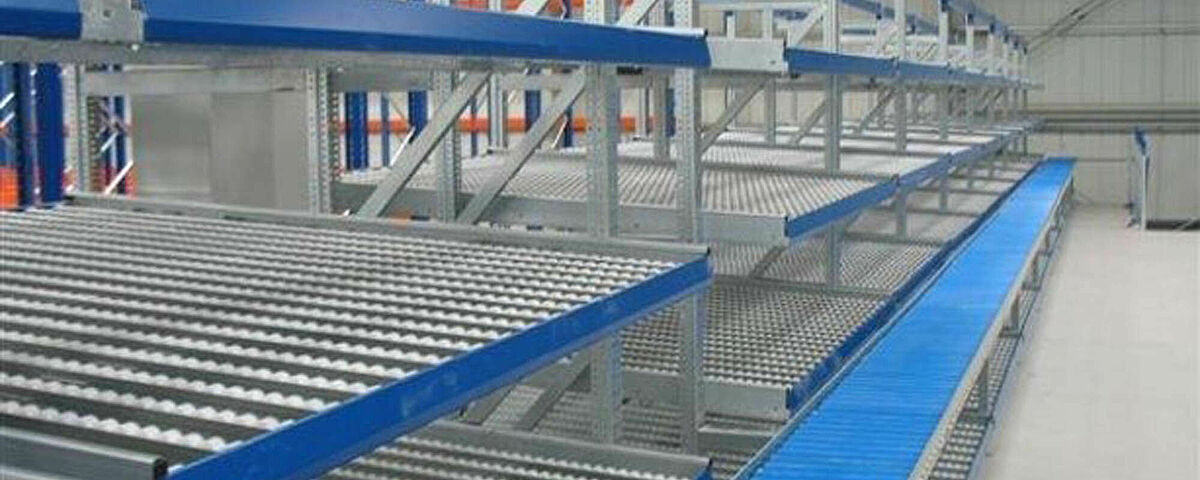

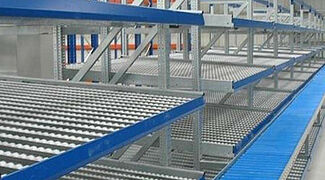

Order-picking flow racking Ohra 01

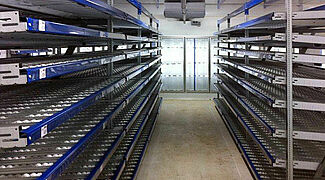

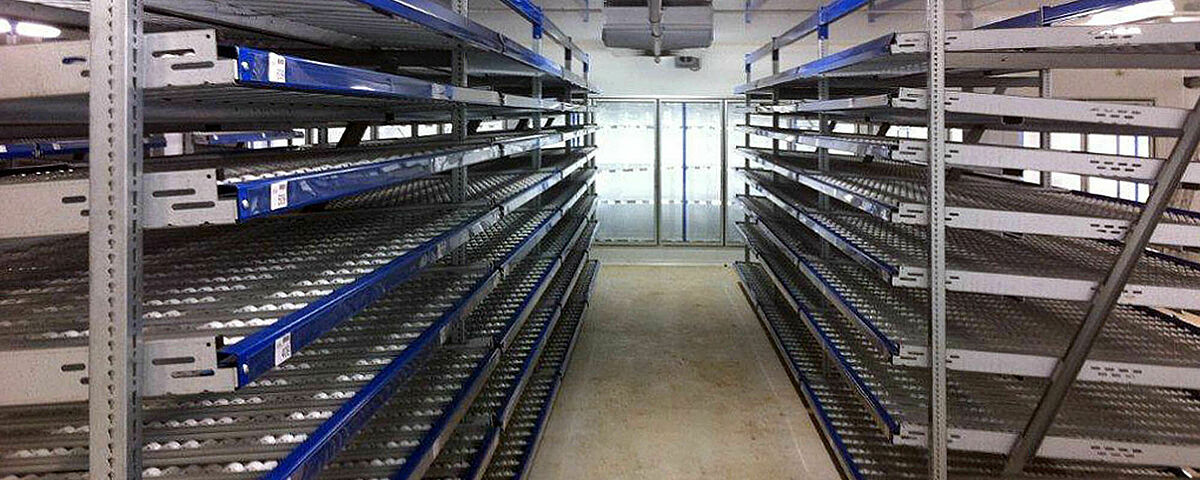

Order-picking flow racking Ohra 04

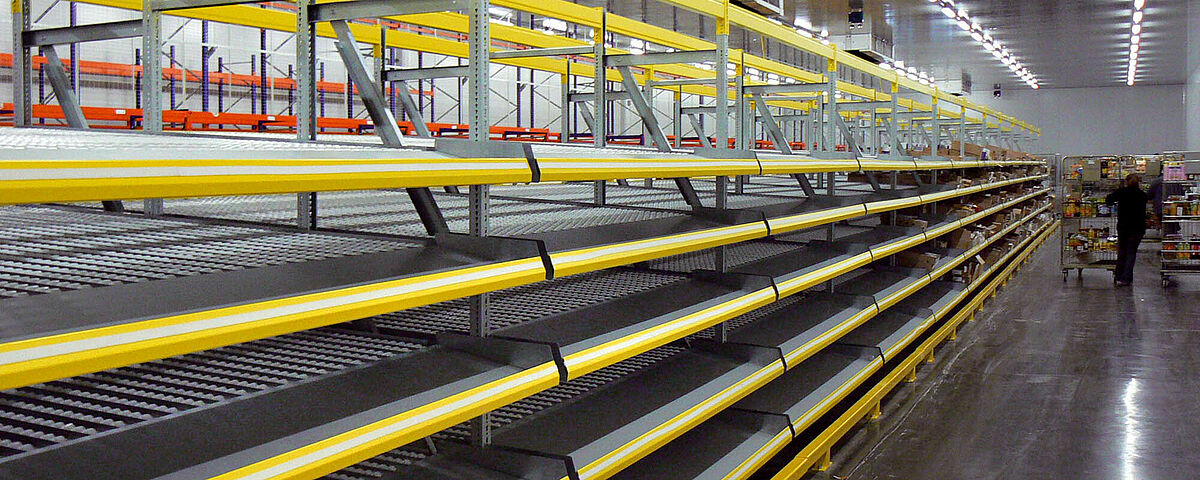

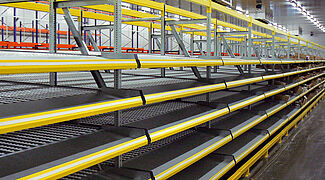

Pallet flow racking Ohra 02

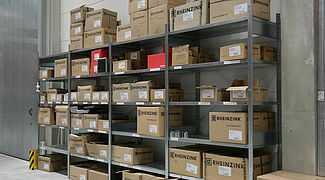

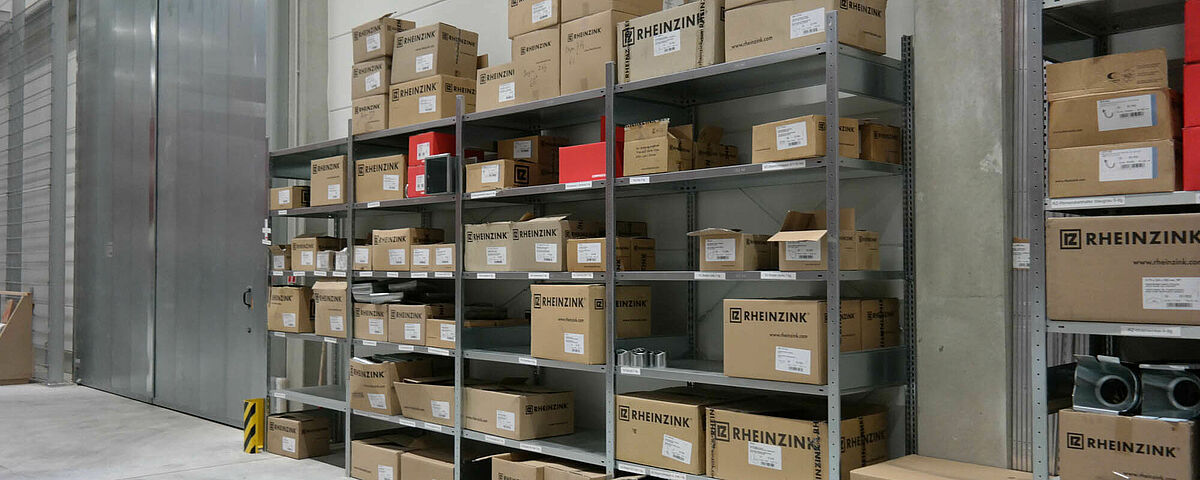

shelving rack 02

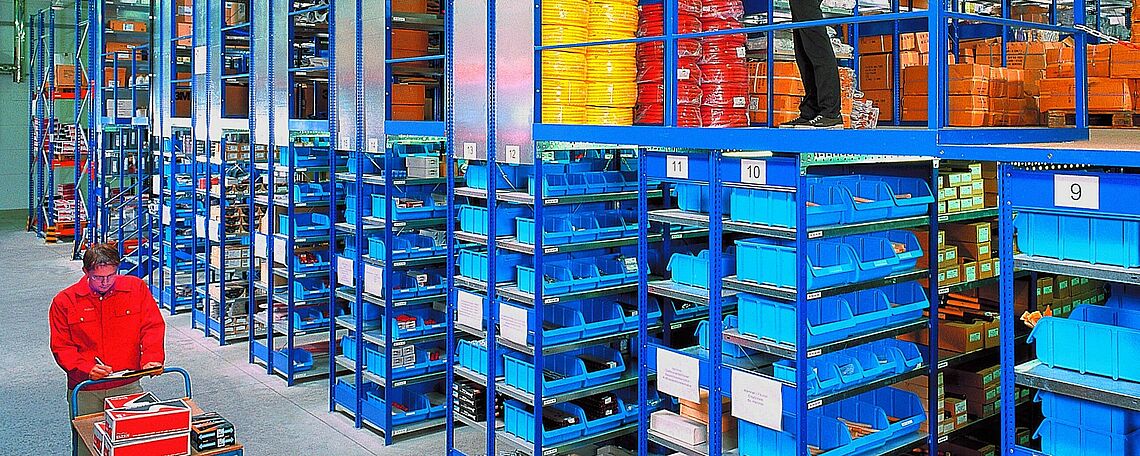

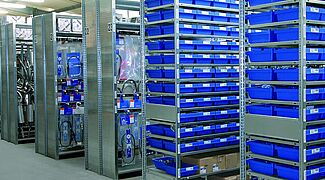

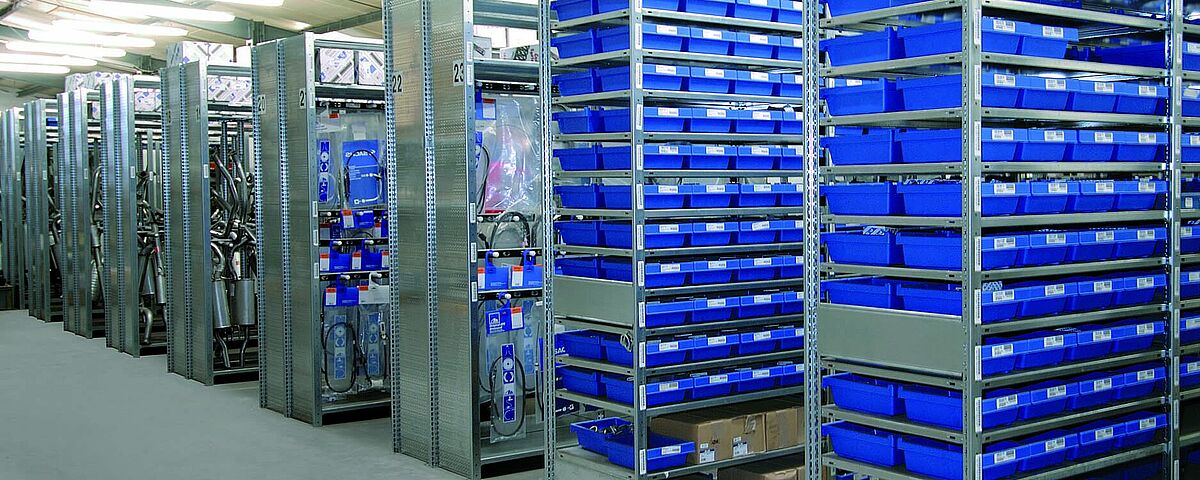

shelving rack 04

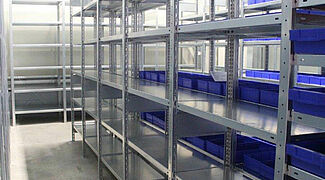

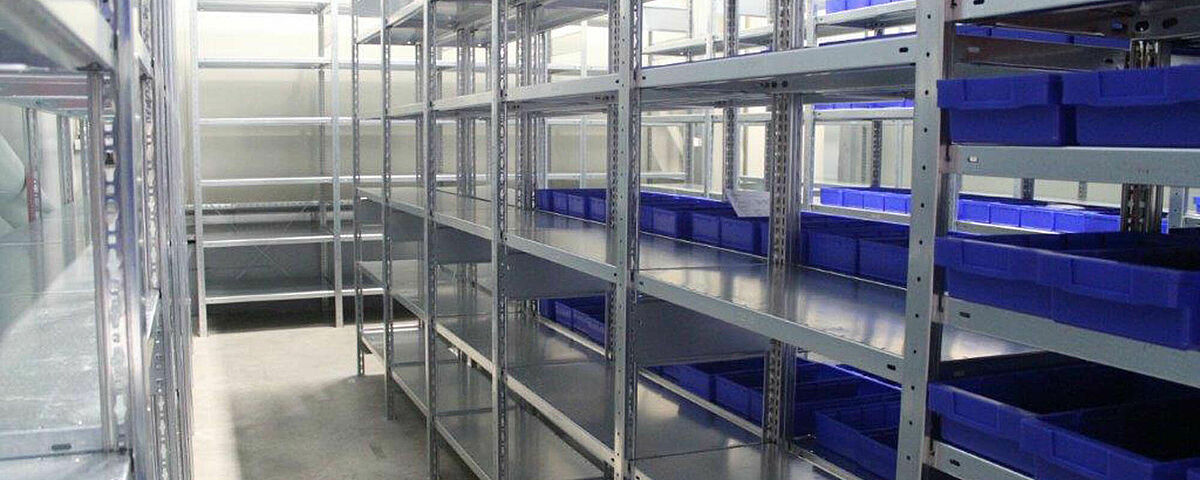

shelving rack 07

Shelving rack

OHRA shelving racks are ideal for storing small parts and non-palletised goods. These galvanized boltless racks are assembled without screw connections and are primarily designed for manual removal of goods. The sturdy shelves have different shelf widths and load capacities and feature several protection edges. The flexibly configurable shelving racks are available in heights of 2,000, 2,500 and 3,000mm, while the shelf depth is optionally 400, 500 or 600mm. The individual shelves can be supplied with load capacities of 150, 250 and 330kg, and the maximum bay load is 1,500kg. These racks are tested in accordance with BGR guidelines and allow the shelves to be adjusted in height in 25mm increments. They are also available as double-sided racks.

Shelf

Wide-span racks

Wide-span racks differ from shelving racks in that they have larger shelf widths and higher load capacities. These racks use horizontal uprights, which can be fitted with either chipboard or steel panels. Ideal for light, medium-heavy, voluminous, or bulky goods such as wallpaper, foam panels, packaging, or cardboard boxes. OHRA wide-span racks are spacious and strong, with galvanized frames and cross beams. The shelf heights are adjustable in 25mm increments, and the shelf widths are optionally 1,500, 2,000 and 2,500mm with a shelf depth of 500, 600 or 800mm. With shelf heights of 2,000, 2,500 and 3,000mm and a maximum bay load of 2,500kg, these racks offer versatile storage options. The individual shelves can bear loads of up to 500kg and there is a choice of shelves made of chipboard or galvanized steel panels.

Wide-span shelving

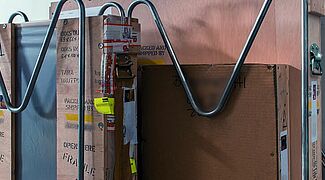

wide span racking 03

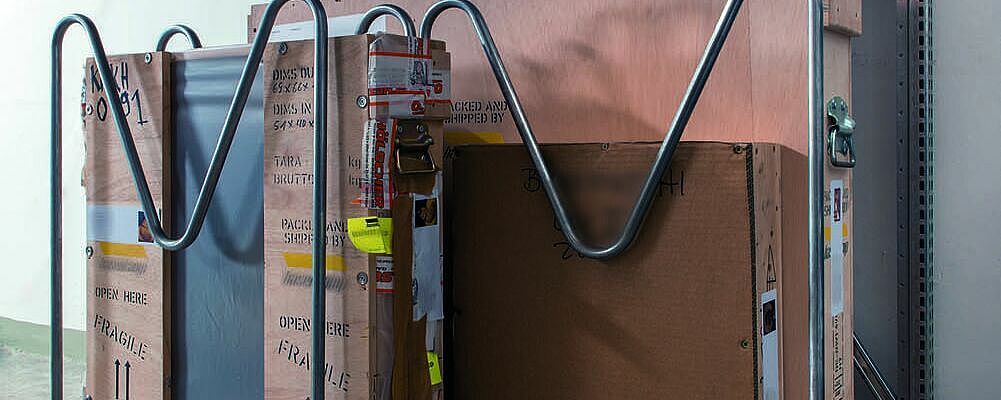

wide span racking 01

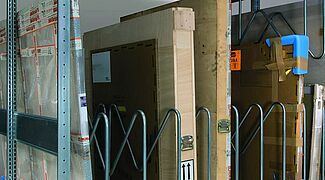

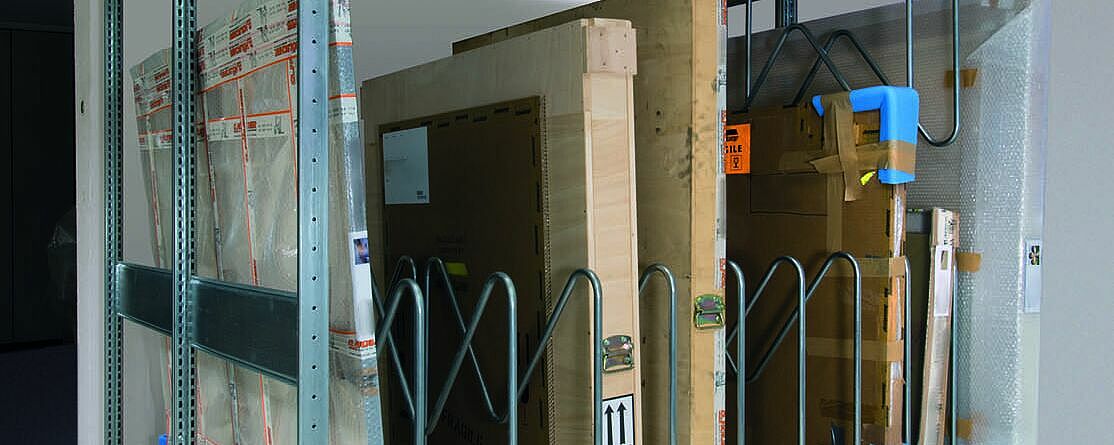

wide span racking 04

Request an individual consultation now!

Consultation

Corrosion protection boat storage

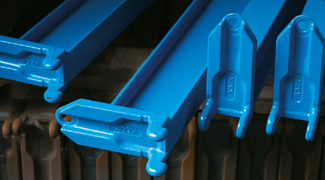

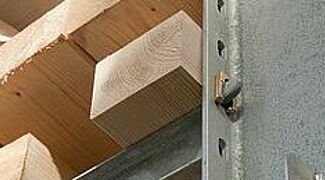

OR6000® corrosion protection

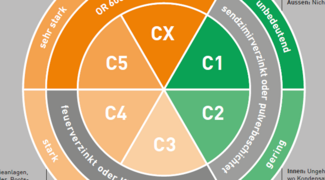

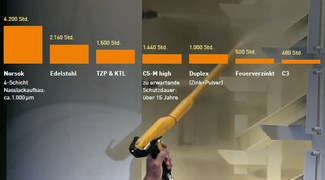

OR 6000® is an innovative coating system from OHRA specially developed for shelving systems that are exposed to extreme environmental conditions. This system offers maximum corrosion protection of storage systems and exceeds the requirements of DIN EN ISO 12944, particularly in the CX category. Even after 6,000 hours of exposure, the coating shows no signs of fatigue. The process includes zinc phosphating, cathodic dip coating (CDC), and up to two layers of powder coating. The fully automated process guarantees outstanding results, a protection of approx. 50 years, and a wide range of applications in various industrial sectors. Further information can be found in the OHRA Download Centre.

Download Centre

References

Besteiro
Stocker Fensterbau AG,
Knaus Tabbert
Thyssen
Solvaro
Besteiro

Besteiro

At Maderas Besteiro, OHRA cantilever racking enables the efficient storage of timbers with a length of up to 13.5 metres; individually adapted pallet racking with up to 15 storage levels also offers plenty of space for the large variety of High Pressure Laminates (HPL). Compared to the original floor storage and outdated racking, Maderas Besteiro was able to increase its storage capacity by 20 per cent in the same storage space, speed up storage and retrieval processes by 30 per cent and reduce damage to stored goods by 70 per cent.

Show success story

Stocker Fensterbau AG,

Stocker Fensterbau AG,

A new mobile racking system from OHRA enables J. Stocker Fensterbau AG to significantly expand its storage capacities for squared timber with only a very small additional space requirement.

Show success story

Knaus Tabbert

Knaus Tabbert

Knaus Tabbert, a leading manufacturer of leisure vehicles in Europe, has equipped a new warehouse in Jandelsbrunn with cantilever and pallet racking from OHRA for the direct supply of the modern bodywork production. This means that different materials such as adhesives, aluminium and GRP coils, plywood packages, PVC flooring or wooden and polyurethane foam strips can be stored efficiently. Mesh shelves in the pallet racking and in some cases also in the cantilever racking enable flexible storage of a wide variety of containers and loading aids. The racking also excelled with its high load capacity - the eight metre high cantilever racks can carry up to 12 tonnes per upright, while the pallet racks have a shelf load of up to 2.4 tonnes. OHRA also scored points for the uncomplicated implementation of the demanding requirements for the fire protection systems: For example, two 80-millimetre holes were drilled in each of the uprights to allow the sprinkler system pipes to be fed through. This solution not only proved to be particularly space-saving, but the pipework is also well protected against damage.

Show success story

Thyssen

Thyssen

A 17-year-old mobile racking system from thyssenkrupp Materials Hungary was brought back to the current state of the art through retrofitting. OHRA replaced worn mechanical parts and modernised the entire electrical engineering. The modernisation ensures that the plant can continue to operate with a high level of availability. The control concept and safety system are now state of the art again - so the modernised plant meets the same requirements as a new one but required only the fraction of the investment.

Show success story

Solvaro

Solvaro

Thermoforming tools are cost-intensive custom-made products, individually tailored to each component to be produced. To store the valuable tools weighing up to seven tonnes, Solvaro has installed special racks from OHRA at its site in Szekszárd, Hungary. Each storage compartment can be individually designed for the respective tool size. In addition, the tools are directly accessible and can be quickly transported to the deep-drawing press. At the same time, the thermoforming tools are always protected from damage thanks to the customised beam construction.



Show success story
